LED drivers for outdoor lighting

Tridonic LED drivers for outdoor lighting that’s easy to dim/brighten

The new 14/24/40/60 W C ADV LED drivers for outdoor lighting offer reliable dimming thanks to the two additional functions chronoSTEP and corridorFUNCTION.

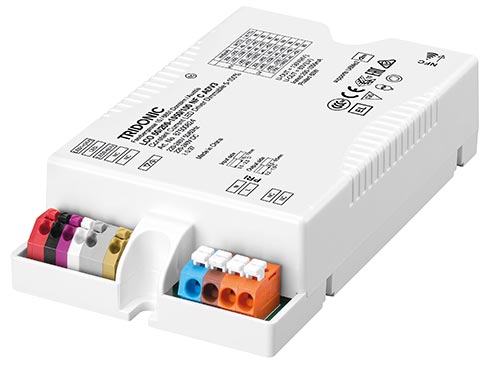

Driver LCO 60 W 200–1050 mA 100V NF C ADV3

Extended voltage window in outdoor ADV drivers

The new 2V-out technology enables efficient operation across the operation window from 200 to 1050 mA. Both the advanced and excite series come with an NFC interface for quick parameterisation during the production of luminaires.

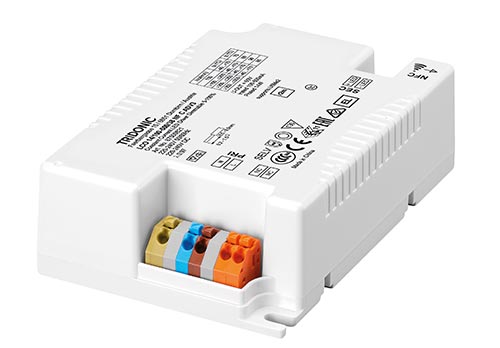

Driver LCO 14W 100–500mA 38V NF C ADV3

advanced outdoor series

Product description

• Dimmable built-in constant current LED Driver
• Output current adjustable between 100 – 500 mA via NFC or ready2mains Programmer
• output power 14 W
• Lowest power input on stand-by < 0.16 W
• Up to 87 % efficiency
• Dimming range 5 – 100 % (min. 5 mA)
• For luminaires of protection class I and protection class II
• Temperature protection as per EN 61347-2-13 C5e
• Nominal life-time of 100,000 h and 8-year guarantee

Interfaces

• Near field communication (NFC)
• ready2mains (configuration via mains)
• U6Me2 (configuration of chronoSTEP 2 via mains)
• Terminal blocks: 45° push terminals

Functions

• Adjustable output current (NFC, ready2mains)
• Programmable chronoSTEP: times and levels (NFC, U6Me2, ready2mains)
• Dimming through mains voltage (inputDIM)
• Enhanced constant light output function (eCLO)
• Protective features (overtemperature, short-circuit, overload, no-load, input voltage range, reduced surge amplification)
• Intelligent Temperature Guard (ITG)
• Intelligent Voltage Guard Plus (IVG+)
• Suitable for emergency escape lighting systems acc. to EN 50172

Benefits

• Application-oriented operating window for maximum compatibility
• Best energy savings due to low stand-by losses and high efficiency
• Flexible configuration via NFC, ready2mains and U6Me2
• In-field programming possible after installation with NFC interface and ready2mains
• High overvoltage protection: up to 10 kV (3 pulses) asymmetric (protection class I and II)

Typical applications

• Road, street and industry
